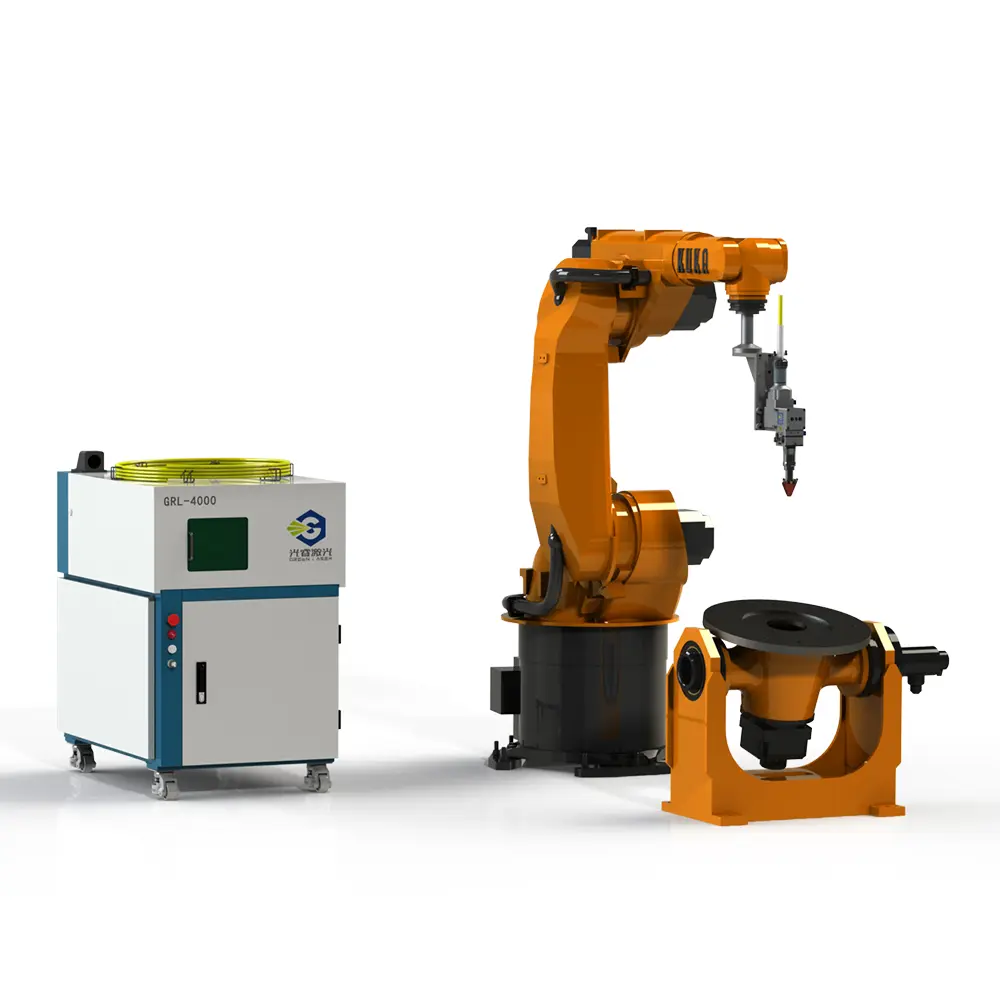

3D mold laser cladding equipment GR-6000LDMR
Product Parameters
|
3D Mold Laser Cladding Equipment Specifications |
|||
| Model | GR-3000LB | GR-6000LB | GR-9000LB |
| Laser power | 3kw | 6kw | 9kw |
| Fiber system | 600μm, 20m | 600μm, 20m | 800μm, 20m |
| Laser cladding lens | GR40LD | GR60LD | GR100LR |
| Powder feeding form | 3-way / 6-way | 3-way / 6-way | 3-way / 6-way |
| Electrical system | Siemens 1500 | Siemens 1500 | Siemens 1500 |
| Powder feeding system | Single/Double Cylinder | Single/Double Cylinder | Single/Double Cylinder |
| Motion system | Robot+Positioning machine | Robot+Positioning machine | Robot+Positioning machine |
Machine Features
1. This 3D mold laser cladding equipment adopts an advanced 8-10 axis linkage CNC system that enables high-precision laser processing for complex curved molds through multi-dimensional coordinated motion control.
2. Its innovative modular design supports dual-station and multi-station configurations, significantly increasing batch processing efficiency.
3. The equipment is primarily used for surface strengthening and damage repair of 3D mold cavities.
4. Featuring a compact integrated structure design, the 3D mold laser cladding equipment occupies a small footprint while being equipped with universal casters and quick connectors for flexible workshop layout adjustments.
5. The forward-looking system architecture reserves an expansion interface for depositional 3D printing capabilities.
Key Functions
• Restoring worn or damaged molds to original specifications, reducing replacement costs.
• Upgrading surface properties (hardness, corrosion resistance, thermal stability) to extend mold service life.
• Enabling rapid, localized material deposition with minimal heat input, preserving mold integrity and dimensional accuracy.

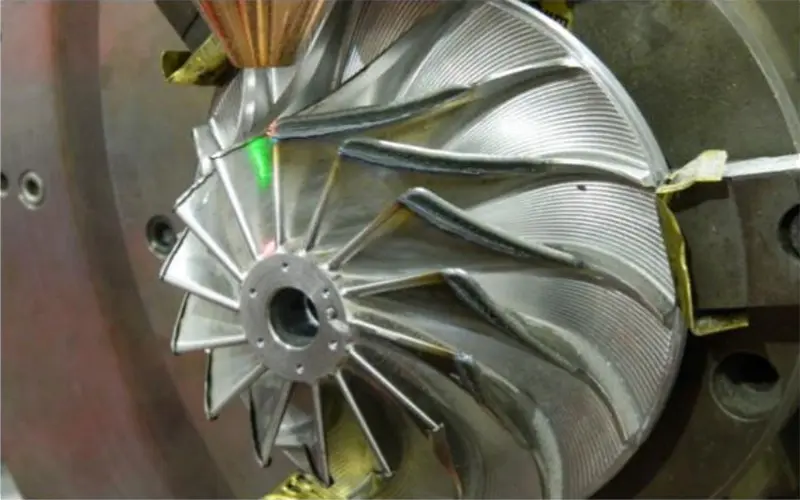

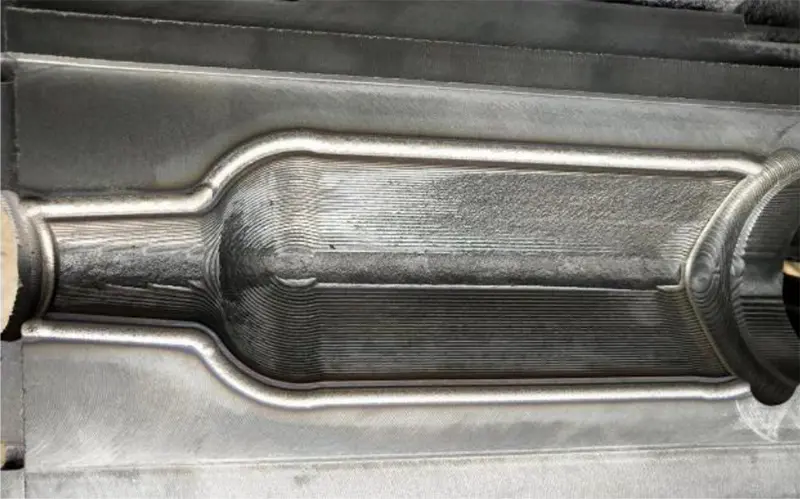

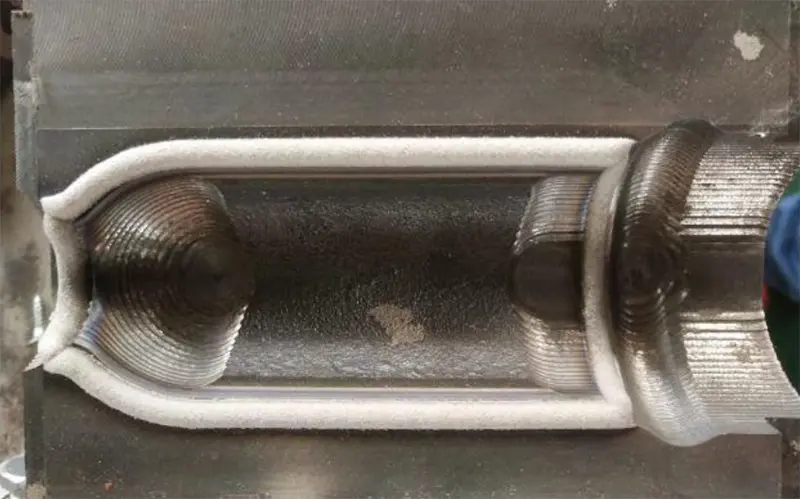

line of production
