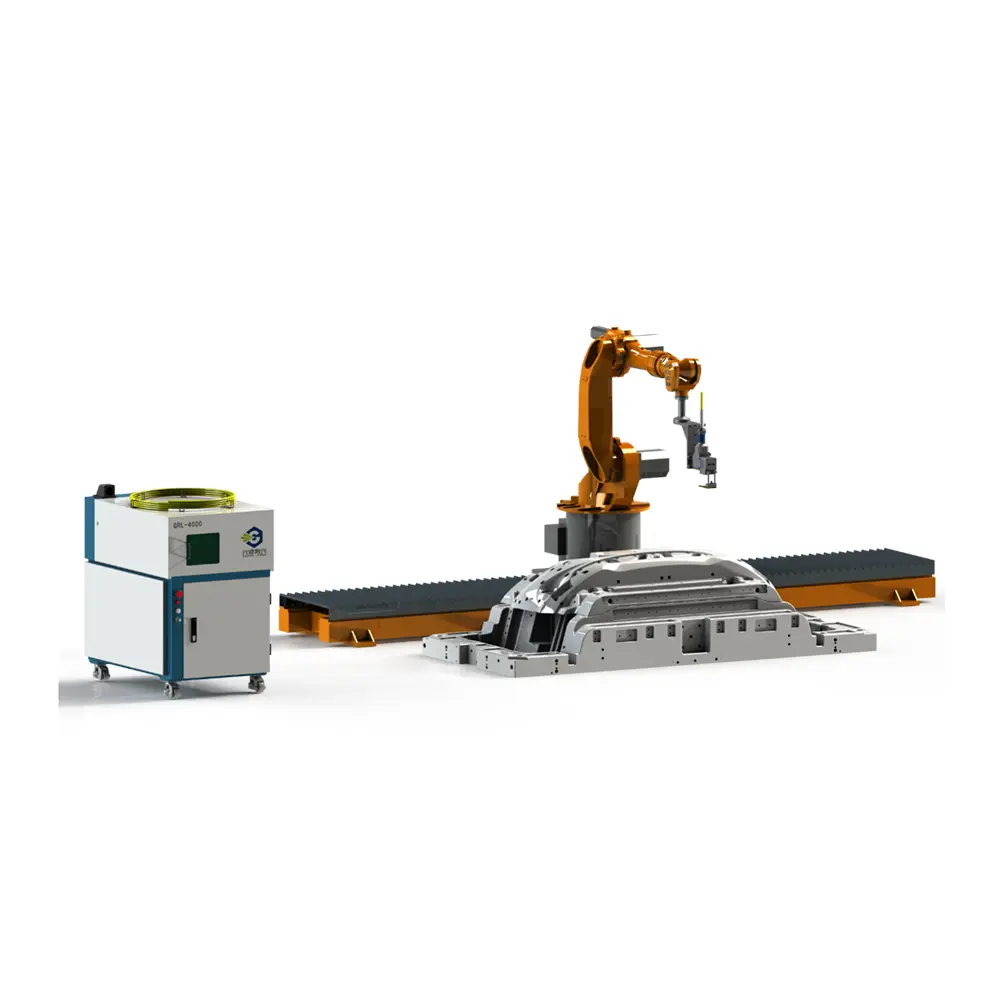

Automotive Mold Robot Laser Quenching Equipment GR-6000LHR/MA
Product Features
1) Adjust laser power, defocus, scanning speed, gas flow, scanning path and other process parameters;
2) 7-axis linkage robot control, built-in laser quenching program, simple operation;
3) Small heat-affected area, uniform and controllable depth and width, smooth surface, no deformation, high hardness;
4) Small amount of consumables, automatic robot scanning, reduced manpower input;
5) Fast quenching speed, high efficiency and low cost.
Product Parameters
|
Main technical parameters |
|
| Laser power | 6kw |
| Laser spot | 10*2mm/20*2mm/30*2mm/40*2mm |
| Quenching efficiency | 0.5-1m2/h |
| Quenching depth | 0.3-1.2mm |
| Applicable material type | Cast iron, carbon steel, die steel |
| Processing parts range | 3*6m |
| Gas Type | Air |
| Pressure range | 15-20L/min |
| Sports form | 6-axis robot + slide table |
| Controller type | Siemens PLC |
| Control panel | 16-inch color touch screen |
| Power supply | Three-phase five-wire system380V±10%，50/60Hz |
| Installation dimensions | 30-60㎡ |
| Weight | 3000KG |
