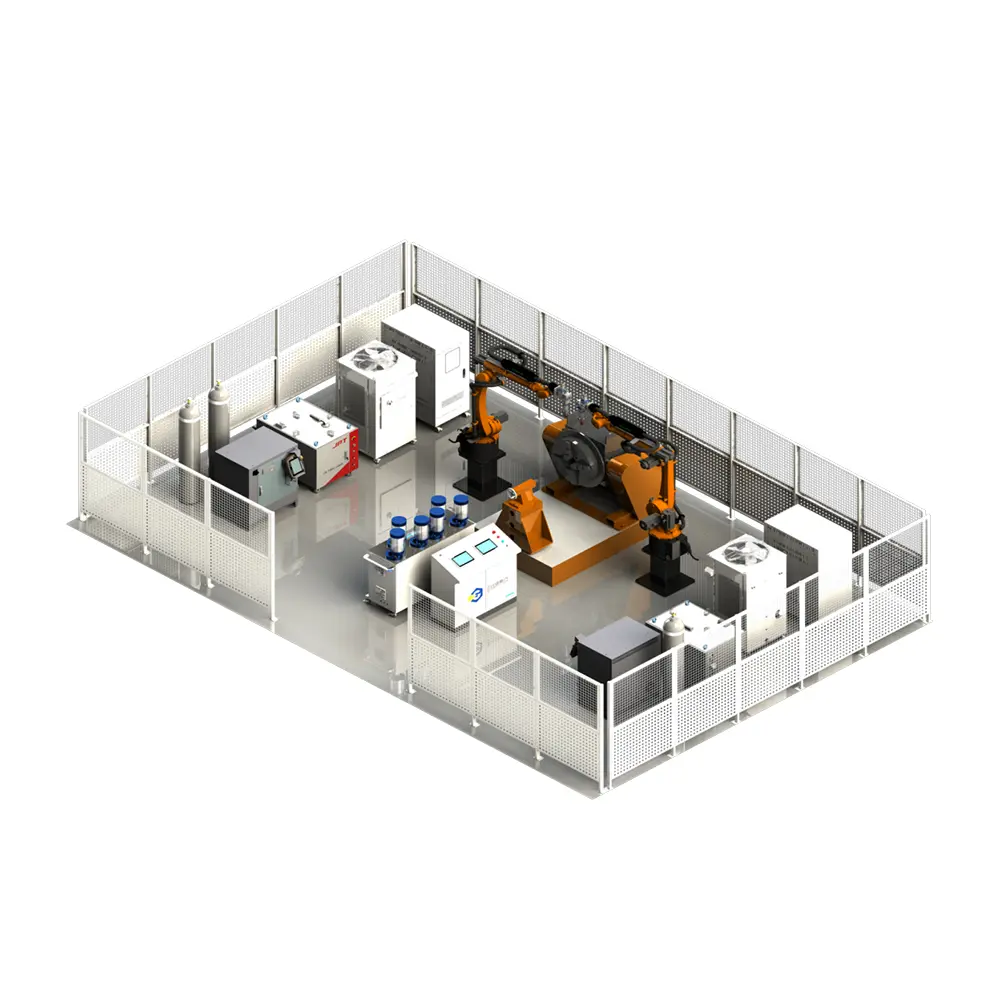

Dual-Robot Collaborative Laser Cladding Workstation GR-6000LDR/DMC
Product Features
1) Laser surface cladding and 3D additive manufacturing for various metal substrates and different alloy powder materials;
2) Multi-component powder feeding design allows for the online production of gradient metal coatings;
3) Dual-machine collaboration for highly coordinated operations, significantly enhancing production efficiency;
4) High precision in weld seam dimensions, with a smooth and uniform surface, and a post-processing grinding requirement of less than 0.3mm;
5) Equipped with an online vision and temperature field control system to ensure high efficiency and consistency in the physical properties of the melt pool.
Product Parameters
|
Main Technical Parameters |
|
| Laser power | 6kw*2 |
| Laser spot | φ2-4mm |
| Cladding efficiency | 0.5-2m2/h |
| Single-layer coating thickness | 0.1-3mm |
| Single-pass cladding width | 2-4mm |
| Multi-layer coating thickness | 5-10mm |
| Coating surface height variation | ＜0.3mm |
| Diameter range of processed parts | 0-1500mm (other specifications can be customized) |
| Length range of processed parts | 0-3m (other specifications can be customized) |
| Weight range of processed parts | 0-500kg (other specifications can be customized) |
| Rotational speed | 0-30r/min |
| Tilting angle | 0-90° |
| Motion accuracy | ±0.1mm |
| Gas Types | Nitrogen, Argon, Helium |
| Pressure range | 15-20L/min |
| Powder feeding method | Gas-carried powder feeding |
| Drive motor | Servo motor |
| Controller type | Siemens PLC |
| Control screen | 10-inch color touch screen |
| Power supply | Three-phase five-wire system 380V±10%，50/60Hz |
| Installation dimensions | 50㎡ |
| Weight | 15t |
