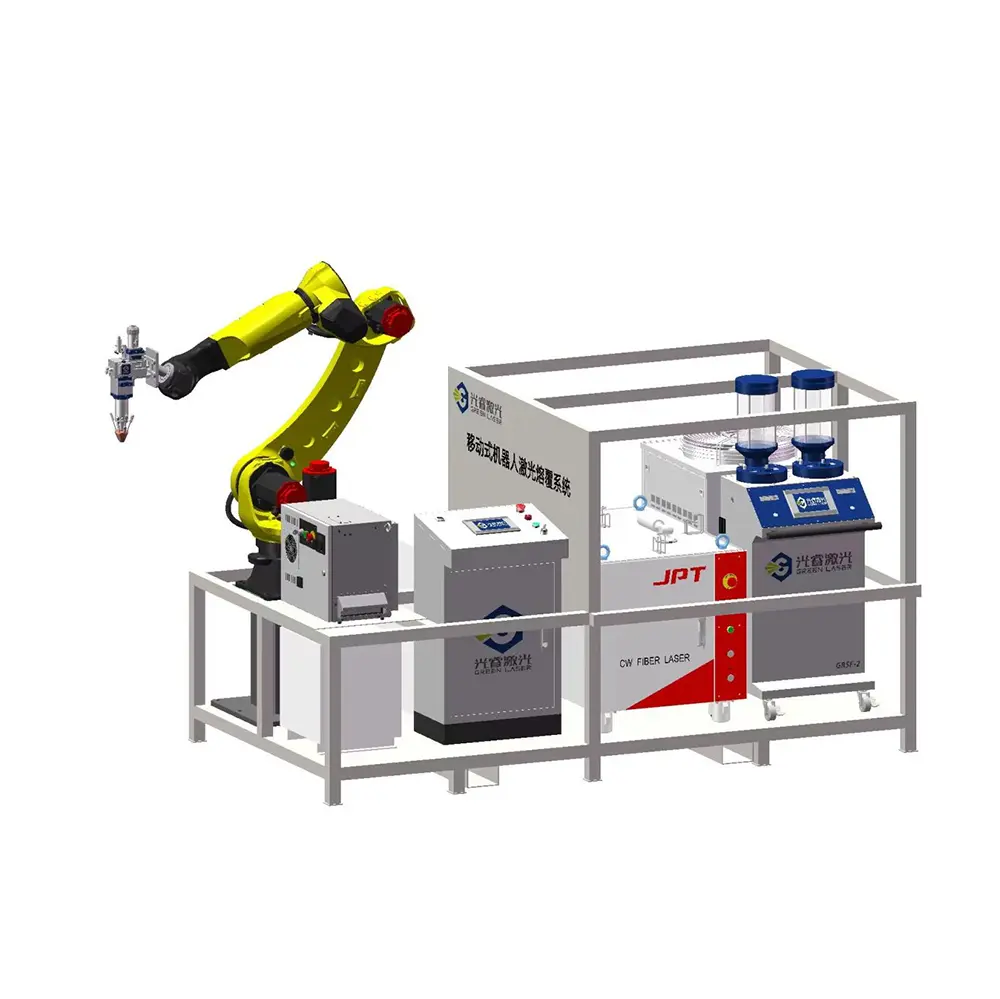

Mobile Robotic Laser Cladding Equipment GR-6000LD/MB
Product Features
1) Facilitates transportation across different areas, with a compact footprint suitable for confined workspaces and seamless switching between multiple workstations;
2) Highly integrated, eliminating the need for frequent disassembly and assembly, significantly reducing equipment packaging time;
3) Ideal for on-site repair and remanufacturing of large or immovable workpieces;
4) Low material consumption, with automated robotic cladding, requiring minimal manual welding expertise;
5) High precision in weld seam dimensions, low dilution rate of the cladding layer, minimal cladding heat, resulting in minimal workpiece deformation, a smooth and even surface, and a height difference within 0.3mm, leading to minimal post-grinding requirements.
Product Parameters
|
Main Technical Parameters |
|
|
Laser Power |
6kw/8kw/12kw |
|
Laser Spot |
φ3-5mm |
|
Cladding Efficiency |
0.25-1m2/h |
|
Single Coating Thickness |
0.1-3mm |
|
Single Track Cladding Width |
5mm |
|
Single Track Cladding Thickness |
0-2.5mm (stackable) |
|
Robot Reach Range |
0-3m |
|
Coating Surface Height Variation |
<0.3mm |
|
Gas Types |
Nitrogen, Argon, Helium |
|
Pressure Range |
15-20L/min |
|
Powder Feeding Method |
Gas-carried powder feeding |
|
Drive Motor |
Servo motor |
|
Controller Type |
Siemens PLC |
|
Control Screen |
10-inch color touch screen |
|
Power Supply |
Three-phase five-wire system 380V±10%,50/60Hz |
|
Installation Dimensions |
15-25㎡ |
|
Weight |
2000KG |
