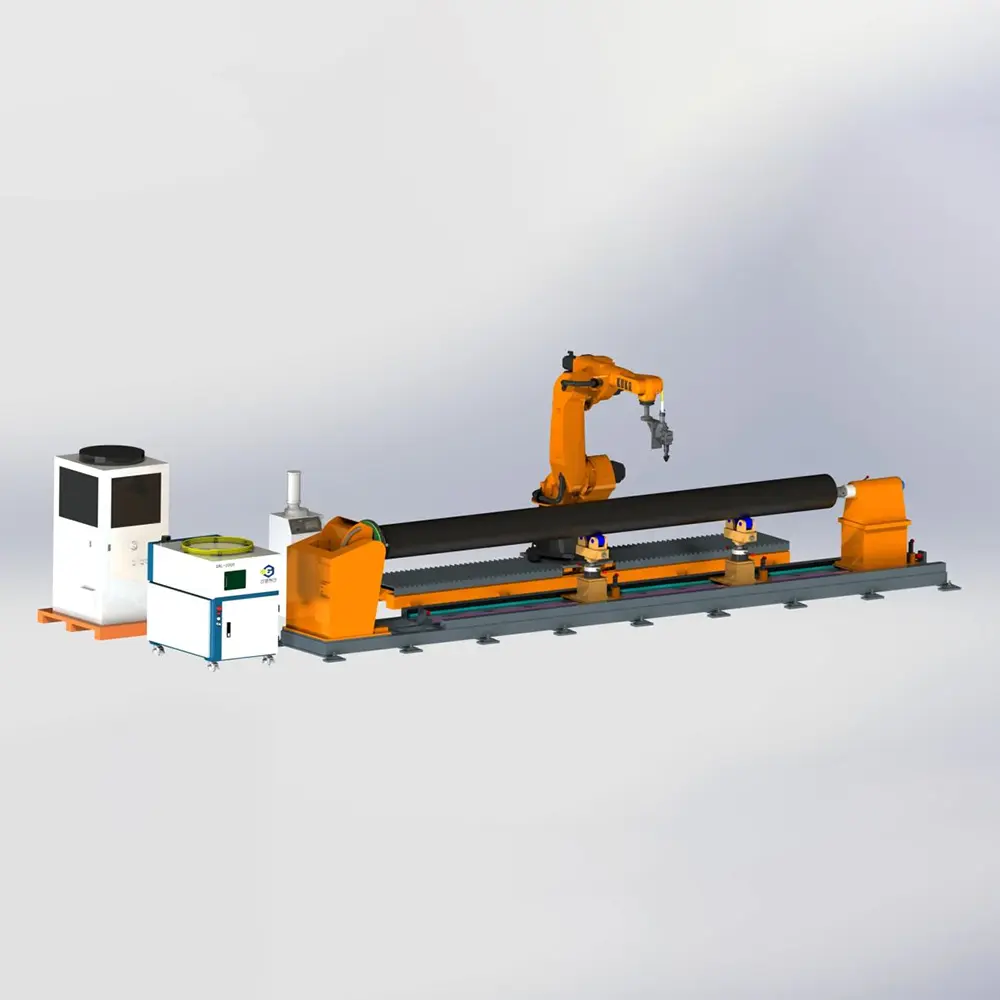

Robot Horizontal Processing Laser Cladding Equipment GR-6000LD/RHM
Product Features
1)Laser surface melting and laser additive manufacturing of different metal matrix materials and different alloy powder materials;
2)Adjustment of laser power, defocusing amount, scanning speed, powder feeding pressure, gas flow, rotating speed and other process parameters;
3)Low dilution rate of the cladding layer to maximize the alloy properties of the cladding layer;
4)Small amount of consumables, automatic robotic cladding, low requirements for manual welding experience;
5)High dimensional accuracy of the weld channel, the surface is flat and even, and the height difference is within 0.3mm with a small amount of late grinding.
Product Parameters
|
Main technical parameters |
|
| Laser power | 6kw/8kw/12kw |
| Laser spot | φ3-5mm |
| Cladding efficiency | 0.25-1m2/h |
| Single coating thickness | 0.1-3mm |
| Single pass cladding width | 5mm |
| Multi-coat thickness | 5-10mm |
| Diameter range of machined parts | 0-1.6m（Other specifications can be customized） |
| Length range of machined parts | 0-3m（Other specifications can be customized） |
| Weight range of machined parts | 0-10t（Other specifications can be customized） |
| Rotation speed | 0-30R/min |
| Coating surface height difference | ＜0.3mm |
| Gas Type | Nitrogen, Argon, Helium |
| Pressure range | 15-20L/min |
| Powder feeding form | Airborne powder delivery |
| Drive motor | Servo Motor |
| Controller type | Siemens PLC |
| Control screen | 10-inch color touch screen |
| Power supply | Three-phase five-wire system380V±10%，50/60Hz |
| Installation dimensions | 15-25㎡ |
| Weight | 5-10t |
